Flexible Metal Pump Connectors
Why use Senior Flexonics Pump Connectors?
The basic function of pump connectors is to provide piping systems with the flexibility needed to absorb noise and vibration, compensate for thermal growth, or permit motion of other piping elements.
Senior Flexonics pump connectors are a perfect match of style, wall thickness and design to minimize the forces and stress within piping systems. These pump connectors are factory engineered, manufactured and tested to effectively minimize the stress on pump and compressor housings and to isolate vibrations transmitted by mechanical equipment. Senior Flexonics can help you comply with noise level requirements by reducing pipe vibration throughout a structure.
PDF Reference Guide: Flexible Metal Pump Connectors
Features:
- Absorbs Thermal Growth Motion
Excellent protection to adjacent piping and equipment. - Compensates for Misalignment
Reduces stresses. - Controls Vibration
Normal mechanical equipment vibrations are reduced at the connector. - Reduces Noise
High pipe vibration noise is greatly reduced . . .often eliminated. - All Metal Construction
Eliminates shelf life problems and allows operation at elevated temperature.

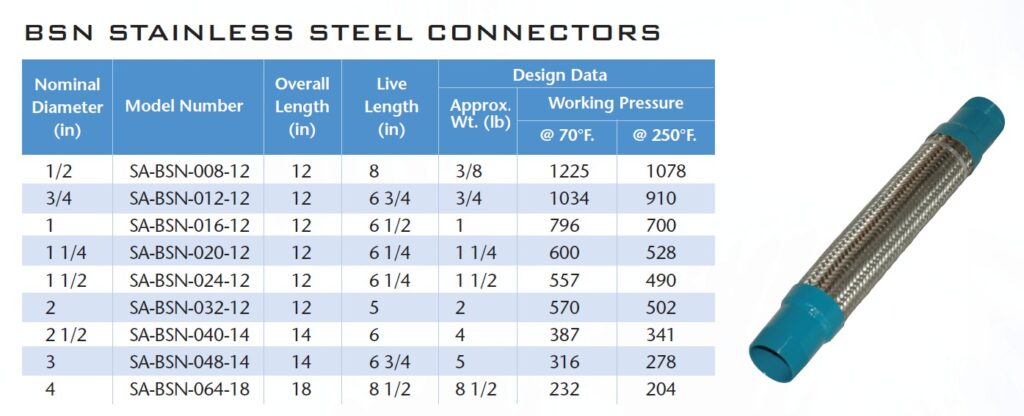

BSN Stainless Steel Connectors
Note: Also available from 18”, 24”, 36” and 48” overall in sizes ½” – 2”
Optional:
- SCH 80 fittings
- Stainless Steel Fittings
- HEX Male Nipples
- Double Braid for higher pressure

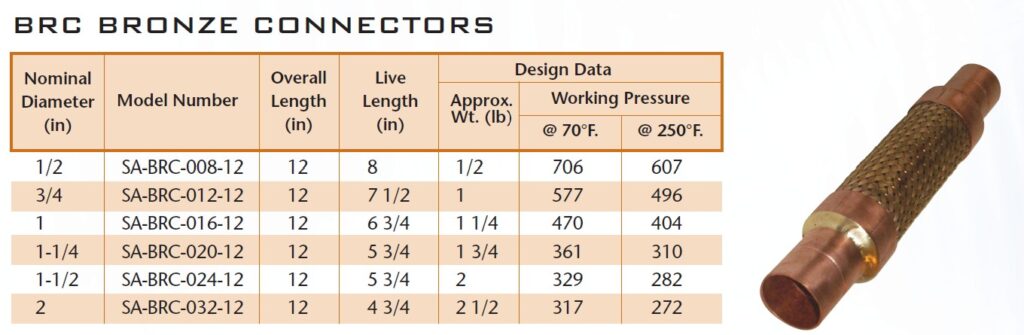

BRC Bronze Connectors
Note: For use in copper piping systems
BRC Bronze Connectors are not CRN registered. Consult factory for more information.

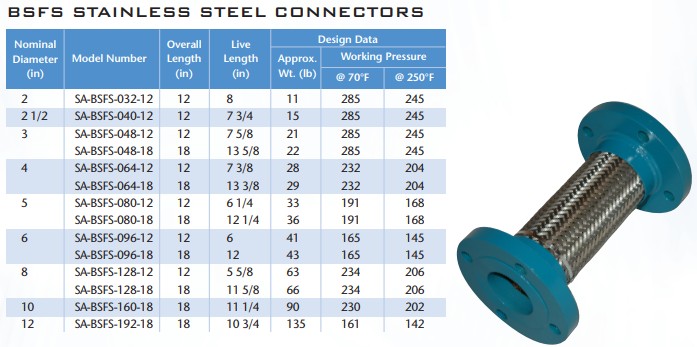

BSFS Stainless Steel Connectors
Optional:
- Stainless Steel Flanges
- 300 Lb Flanges

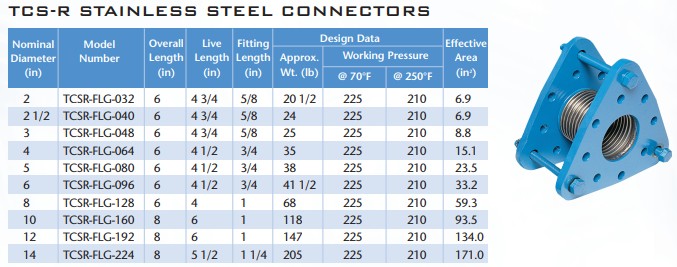

TCS-R Stainless Steel Connectors
Note: Model TCS-R rated for 1” compression, 3/8” extension, 1/8” -5/16” lateral and pump vibration. (Depending on size)
- Movements shown are non-concurrent
- Larger sizes available upon request
